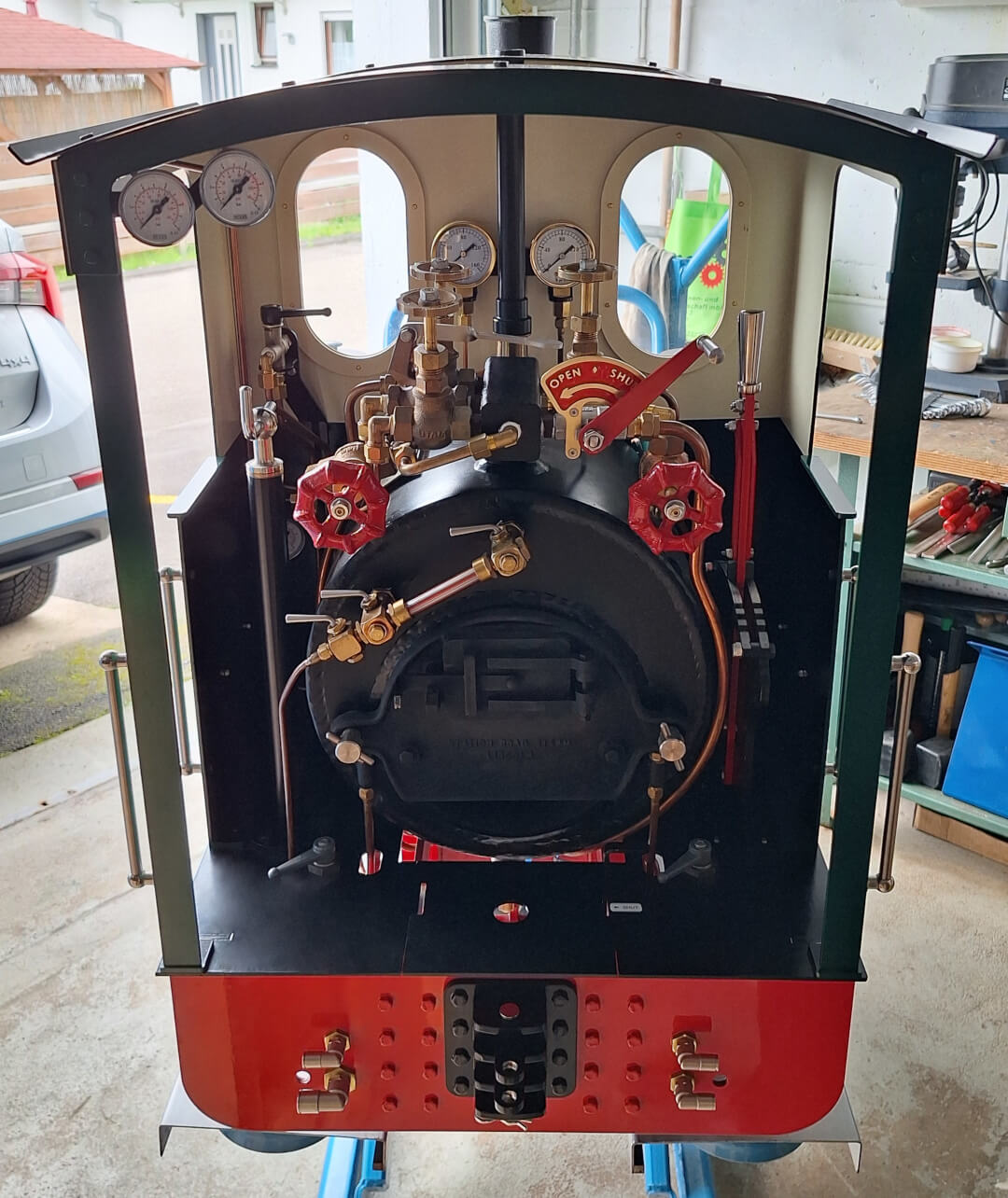

A bracket to take two pressure gauges – indicating main pressure (pressurized air) and brake line pressure. It can be mounted directly in the rear top left corner of the cab, without the need for extra drilling by using the existing frame holes. Only the two screws have to be replaced with slightly longer ones. The two slotted holes allow for some vertical adjustment of the bracket to align the gauges with the cab’s roof. With an angle of 105°, the gauges are orientated slightly towards the driver.
This bracket is a part of the general modification to allow the Feldbahn to brake a whole train with pressurized air (see Train Brake System, and Pressure Gauges for a greater view of the assembly).
The bracket is made from 2.5 mm steel sheet and is designed to take two G ⅛" bulkhead screw connections (SV 18 MS). This connections then take the pressure gauges (e.g. two MW 1040, sealed with a copper gasket) and the straight compression ring fittings (KGE 184 KON MS) on the other side of the bulkhead screw connections (to connect the 4 mm copper pipes too).
Downloads
- Pressure Gauge Bracket (*.step)
- Pressure Gauge Bracket (*.dxf)
